Aluminum Stage: Executive Staging

Lightweight, affordable and easy to set up, all in one complete package.

Executive Platforms make it easy to create any type of stage platform you need. You can configure it into a stage, runway, speaker platform or seated risers.

Overview

Specifications

Accessories

Custom Design

Overview

Common Uses

Graduation

Seated Risers

Tiered Audience Seating

Runways

Speaker/Camera Platforms

Corporate Events

Displays

Outdoor Events

Drum Riser

Flat or Multi-level

Options

Stage Heights Available 8″, 16″, 24″, 32″, 40″Extended Heights Available 48”, 56”, 64”, 72”Standard Platform Sizes 4’x8’ / 4’x6’ / 4’x4’ / 3’x8’ / 3’x6’*Customization available – contact us for custom heights and deck size requirements.

Surface Options Available

	Black top surface
	Carpet top surface

*Other colours available upon request.

Specifications

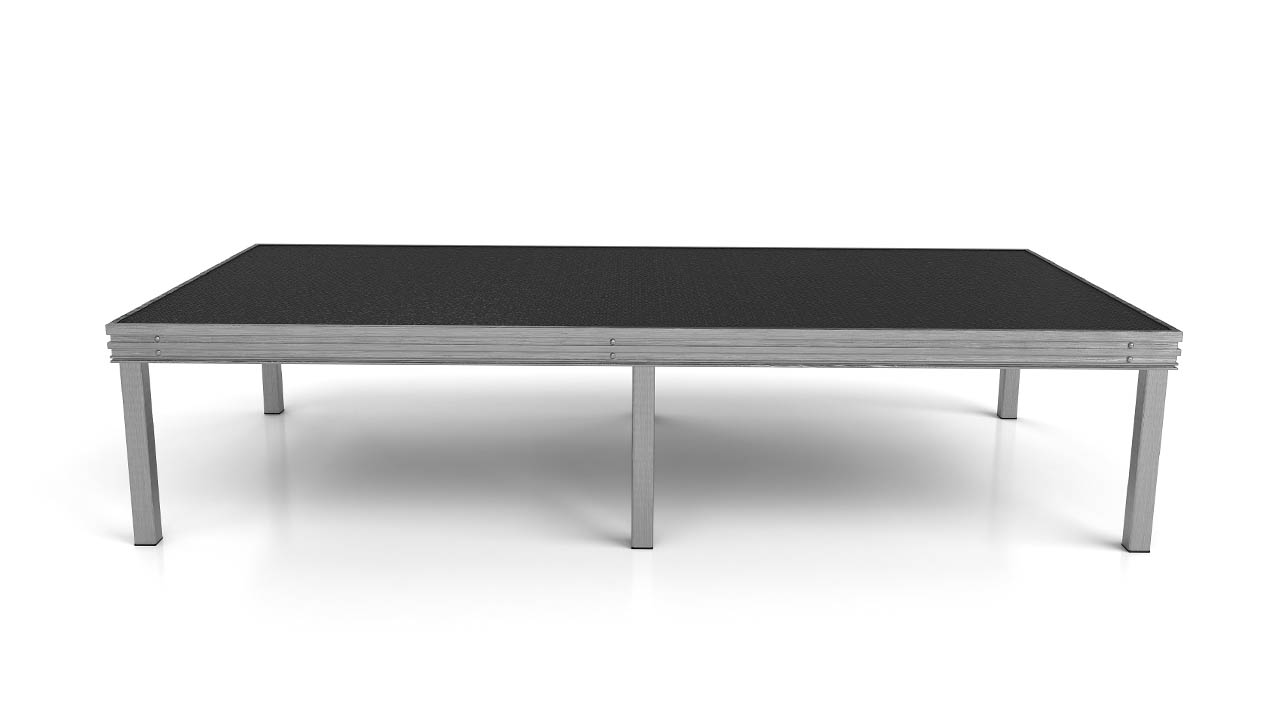

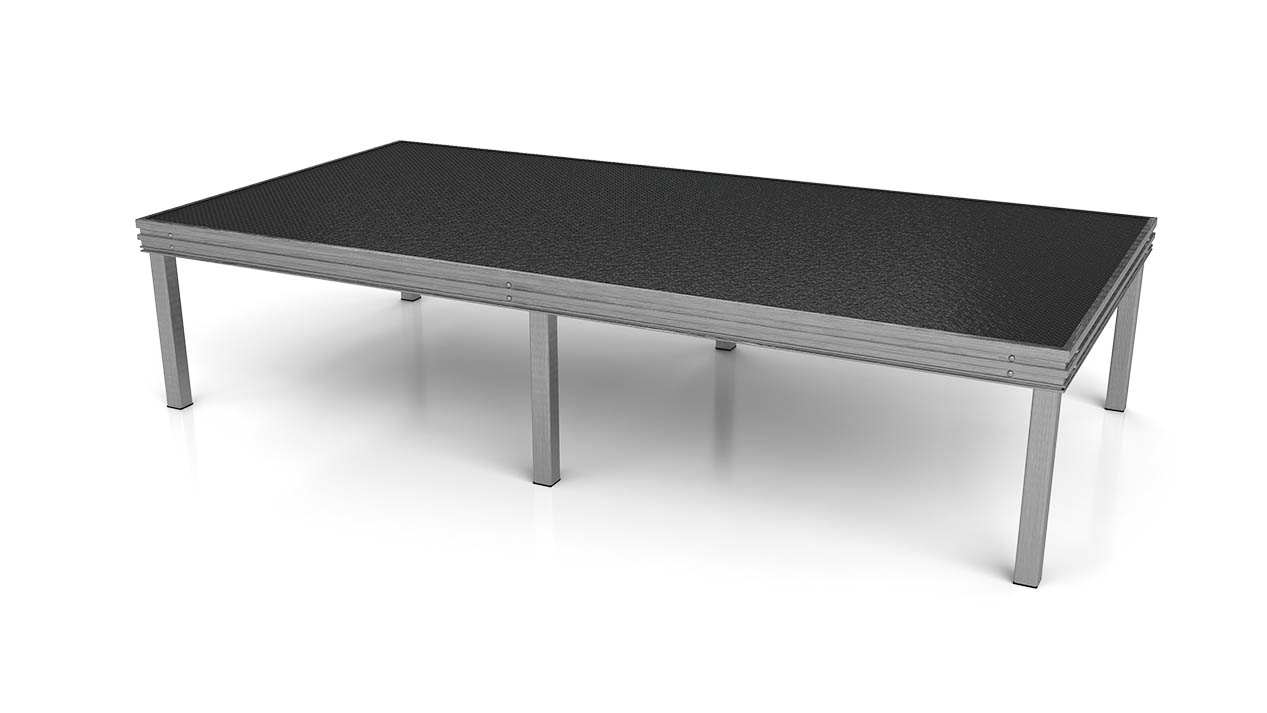

Executive Platforms make it easy to create any type of stage you need. Configure it into a stage, runway, speaker platform or seated risers.
250 lb/sqft live load rating
Six interchangeable 2” square anodized
legs and support eliminating deflection and bounce
Lightweight at 100 lbs per 4’ x 8’ platform
Solid construction with 3/4” plywood deck and 3 5/8” deep anodized frame that wraps the deck top and bottom
Legs attach quickly and securely with no tools required
Interchangeable legs allow for other stage heights or tiered seating
Fine adjustable leg and telescoping leg options
Platforms and legs are stored compactly on an Executive Storage Cart
Available with a carpet top or black top*
Executive Quick Release Pin provides a positive, secure lock
Ten Year Warranty

*Black top is a durable stage cover made of phenolic resin. It is textured on top and smooth underneath. It is scuff, skid and weather resistant.Manuals, support videos, and other resources are located on our Help Center page

Accessories

	Standard Stairways Built tough and durable with “tip and roll” mobility, and complete with dual handrails The stairway is 36” wide and each step is 11” deep Available with non-slip tread coverings of either black top or carpet top All stairways attach to the stage edge for added safety Available in: 2-step for 16” or 24” stage height 3-step for 24” or 32” stage height 4-step for 32” or 40” stage height 5-step for 40” or 48” stage height
	Stairway Without Rail Provides unobstructed access to your stage Available in: 2-step for 16” or 24” stage height
	One Step Stair Provide simple access for 16” stage heights
	Accessible Wheelchair Ramp Provide wheelchair access to your events Complies with ADA/ODA/IBC/NBC guidelines Easy set up offering flexibility in configurations using stage back entry or side entry Available for all stage heights Complete with guardrails Surface options: Black top and carpet top
	Safety Railing Add security to any stage or riser performance All safety railings have built-in chair stops Guardrails attach without tools Available in: 3’, 4’, 5’, 6’, 8’
	Chair Stops Prevent chair legs from sliding off the platform edge Fast and easy setup—simply clamp onto stage edge No tools required
	Closure Panel Create a finished look for your seated risers with front and side closure panels Easy to install with a durable phenolic resin finish They double as a chair stop
	Executive Storage Carts Designed to hold platforms and legs Total height when stages are loaded: 57.5” 6-unit cart (25.5” wide x 105” long) 8-unit cart (33.5” wide x 105” long) 9-unit cart (37.5” wide x 105” long)
	Extended Leg Cart For storage of your extended height legs and cross-bracing, choose the extended leg cart Each cart will hold legs and cross-bracing for nine executive platforms
	Rail Cart Store your rails and chair stops simply and compactly on a rail cart Each cart holds 18 – 8’ rails
	Equipment Ramp Providing easy access for getting equipment on and off stage
	Stage Skirting Add the final touch with a stage skirt A beautifully finished 2” pleat skirt will give that professional look The skirting is easy to attach to the stage with its sewn-in velcro Skirting is available at any height. All the fabric used is fire retardant 11 oz 100% Avora™ polyester Our standard is black with a varienty of other s available upon request
	Portable Staging Backdrops Give your stage a professional look with easy to set up adjustable backdrops 8’ fixed height or 7’-12’ adjustable uprights with telescoping 7’-12’ drape supports Pleated drapery comes in 8’ x 8’ or 4’ x 8’ sections or custom lengths
	Stage Front Drapery A front drapery system dresses up your portable stage and allows behind-the-scenes activity This system will fit a 24’, 32’ or 40’ stage front. Our drapery systems come with top and side valance, side stationary curtains and middle pull curtains. The truss frame system is free-standing and attaches to your stage All the fabric used is flame-resistant 11 oz 100% polyester Our standard is black with a varienty of other s available upon request
	Drum Riser geoip_detect2_show_if not_country=”CA”]Maneuver[/geoip_detect2_show_if] your drum kit or musicians around the stage using the rolling drum riser With a steel frame and 900 lb casters, each cart fits a 4’ x 8’ executive platform Create an 8 ’x 8’ drum riser by securing two platforms together

Custom Design

We Have What You Need

At Staging Canadell, we realize that you can not always find what you are looking for in a standard “off the shelf” package. The executive line lends itself very well to customization, oftentimes at very little or no additional cost. Anything from complex curves and angles to simple cut-outs around pillars or custom-sized section or leg height is possible with the executive line.

What Can Be Customized?

Often your staging needs require more than a standard portable stage can offer. The executive line has been designed to accommodate those needs. If any of the following are what you need, we can help!

Utilizing 3D imagery to custom design and build pit fillers
Curves or angles to meet up with existing stages or raised platforms
Notches for structural pillars
Tier or bridge over built-in stairs/steps
Colours of carpet surfacing or skirting/drapery
Leg heights for uneven or multi- floors
Customized ramps, stairs, railings or carts

Is Customization Expensive?

We do not charge for most customizations. Things like 3D imaging or laser cutting can add to the cost.

A cautionary note about custom stage designs

We have optimized our stages to be as cost-effective as possible. Changing them can lead to wasted material and space. A stage with a notch cut out of it cost the same as if the notch were not there. The price is the same but the surface area has gone down. Still, the notch might let you fit in a bigger stage than if it wasn’t there. It is good to think of these things before making alterations.

Common Layouts

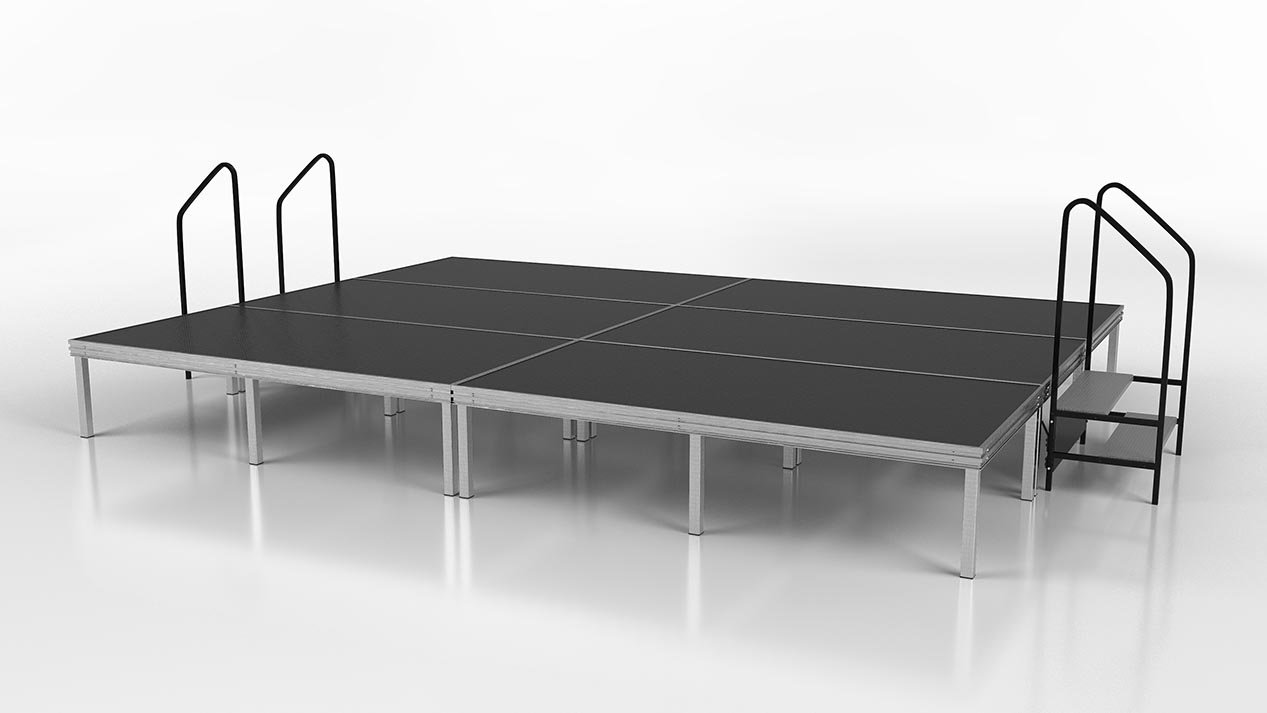

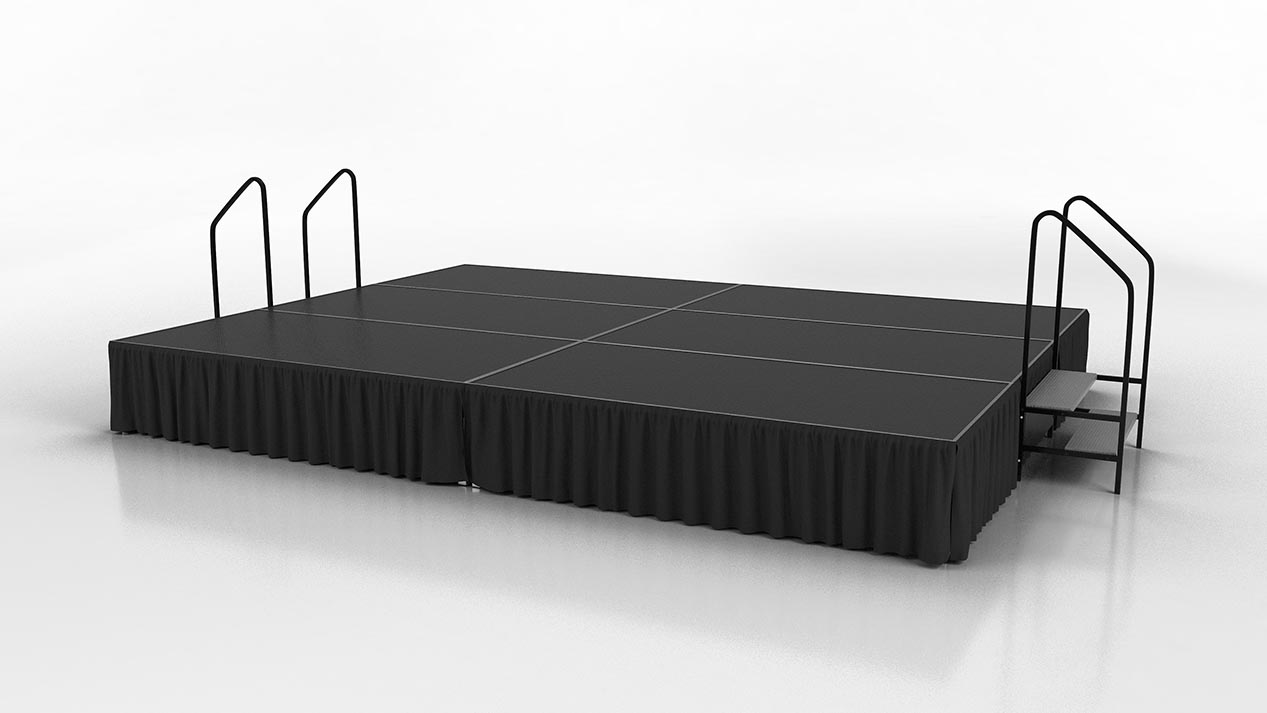

Executive Layout 1

12′ x 16′ x 24″H Stage
Two sets of stairs
Stage skirting

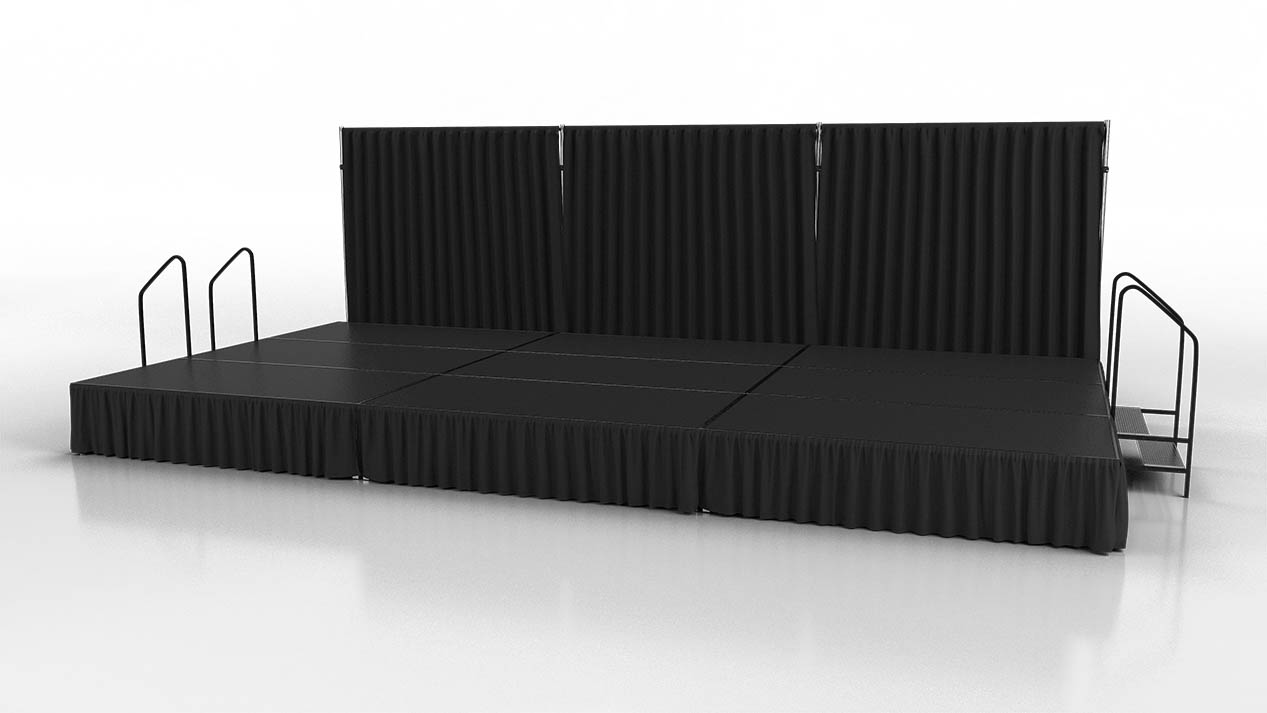

Executive Layout 2

12′ x 24′ x 24″H Stage
Two sets of stairs
Stage skirting
Staging backdrop

Executive Layout 3

16′ x 32′ x 16″H Stage
One set of stairs
Stage skirting
Accessible Wheelchair Ramp
